Reliable Flexible Shaft Coupling , High Speed Flexible Coupling Wearproof

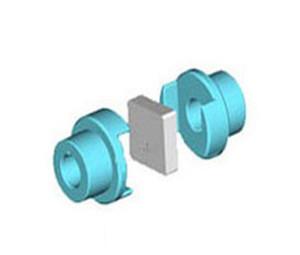

Details of slider coupling

The structure of the slider coupling is similar to that of the cross slider coupling. The difference is that the middle cross slider is a square slider. Realize the coupling of the two halves of the coupling.

• The sliding of the middle slider is used to realize the connection of the beam half coupling and compensate the relative displacement of the two axes.
• The main feature is to allow the two shafts to have large radial displacement and allow for large angular displacement and axial displacement.
• Due to the centrifugal force generated by the eccentric motion of the slider,so the coupling is not suitable for high-speed rotation.
• slider coupling is mainly used for CNC machine and roll plate straightening machine and suitable for connection of two coaxial lines of the drive shaft coupling,it has a large radial displacement.

Features of slider couplings
1. High torque rigidity and sensitivity
2. Simple structure makes installation easy
3. Super strong resistance to oil corrosion and electrical insulation
4. Minimize the axial load caused by the deviation
5. The sliding between the sleeve and the middle can allow large radial and angular deviations

sliding shaft coupling

high speed flexible coupling
